Ser. |
Equipment |
Machining Range (X*Y*Z) mm |
Precision (mm) |
Unit |
Quantity |
|
Production Equipment |

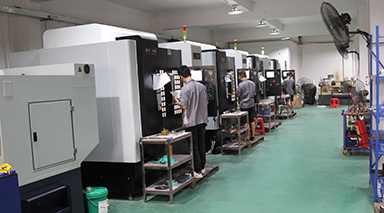

CNC machining center |
1000*600*600 |
0.005 |
pc |
9 |
|
CNC lathe |
Ø300*750 |
0.005 |
pc |
2 |
|
Plain lathe |
Ø300*750 |
0.01 |
pc |
1 |
|

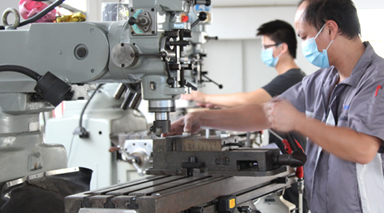

Milling machine |
800*400*500 |
0.02 |
pc |
5 |
|
Hand grinding machine |
300*200*400 |
0.005 |
pc |
1 |
|
Semi-automatic grinding |
1020S |
/ |
pc |
1 |
|

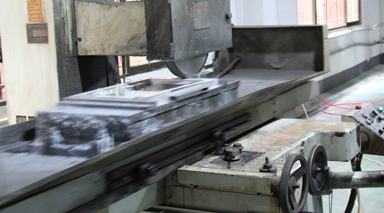

Water grinding |
400*800*450 |
0.005 |
pc |
1 |
|
Wire cutting |
500*400*150 |
0.02 |
pc |
3 |
|
EDM machine |
400*300 |
/ |
pc |
1 |
|
Drilling machine |
Φ16 |
/ |
pc |
1 |
|
Tapping center |
1000*1000*300 |
/ |
pc |
2 |
|
Sand blasting machine |
1000*800 |
/ |
pc |
1 |
|
Inspection Equipment |

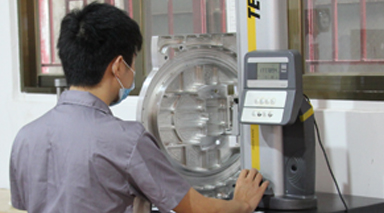

Altimeter |
0-700mm; |
3+L/150um |
pc |
1 |
|

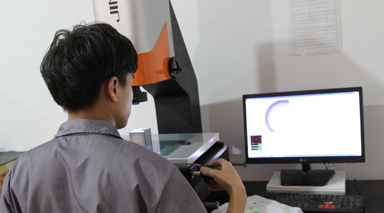

Image measuring instrument |
300x200mm; |
4+L/50um |
pc |
1 |
|
Micrometer |
0-25mm 25-50mm; 50-75mm; 75-100mm; 100-125mm;
125-150mm; 150-175mm; 175-200mm; 200-225mm
0-1''; 1-2"; 2-3‘’; 3-4‘’; 4-5‘’; 5-6‘’; 6-7‘’; 7-8‘’; 8-9‘’ |
0.001 mm
0.0001 inch |
pc |
10 |
|
Calipers |
0-150mm; 0-200mm; 0-300mm |
0.01mm |
pc |
25 |
|
Block Gauge |
1～100mm (83pcs); |
Tier 0 |
set |
2 |
|
PIN Gauge |
0.50-12.0mm |
0.01mm |
set |
2 |
|
Dial indicator |
10-18mm; 18-34mm; 35-60mm; 50-150mm; 100-200mm; 160-250mm |
0.001mm |
set |
10 |
|
Thread gauge |
Metric, Bsp, Ast |
6H, 2B, 6G, 2A |
set |
1 |
